GM-DHA 80

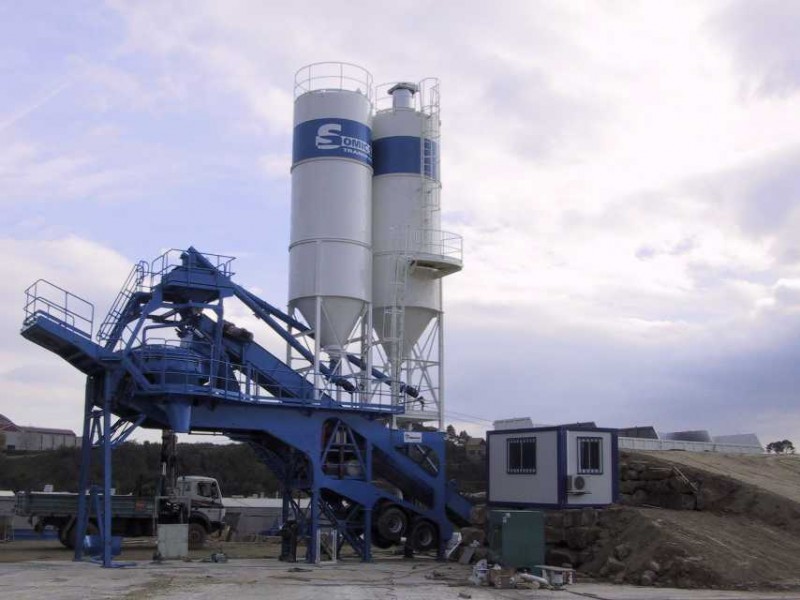

Mobile ready mix concrete plant, with wheel system for transport that has the following characteristics:
| Cycle capacity | 2 m3 |
| Production | 60 m3/h |
| Series of aggregate hoppers | 4 x 20m3/unit |
| Weighing belt | 800 mm wide |
| Elevator belt | 800 mm wide |
| Mixer | 2 m3, planetary |
| Cement silos | 2 x 60 t |
| Cement screw conveyor | 275 mm diameter |
| Cement dosing | Cement scale |
| Water dosing | Water scale |
| Control equipment | Included |
| By-pass for dry mix | Optional |
| Running gear | Included |
TALLERES ALQUEZAR S.A.
Main Location
Polígono de Malpica, c/F, naves 19-20, 50.016 Zaragoza – España (Spain)
International Projects
Europe, Africa, Asia and America
